RipRap for Florida Banks and Outfalls

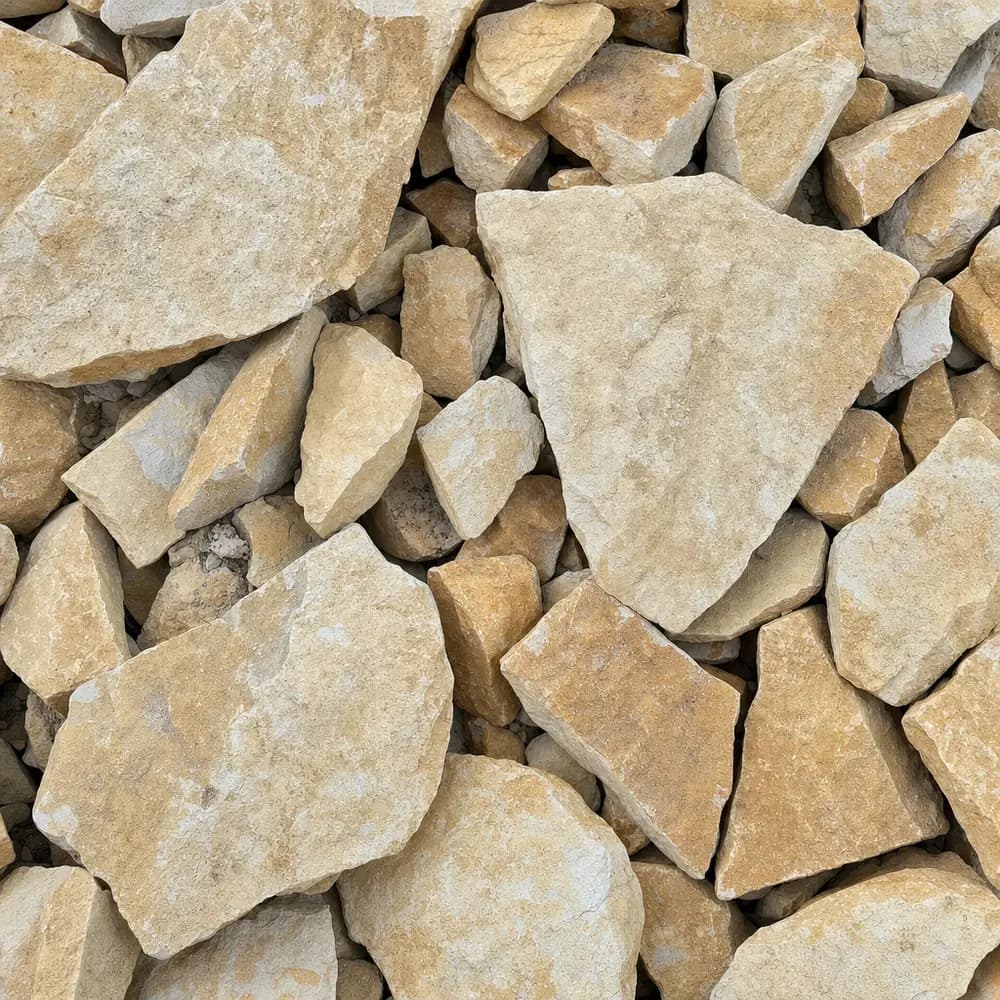

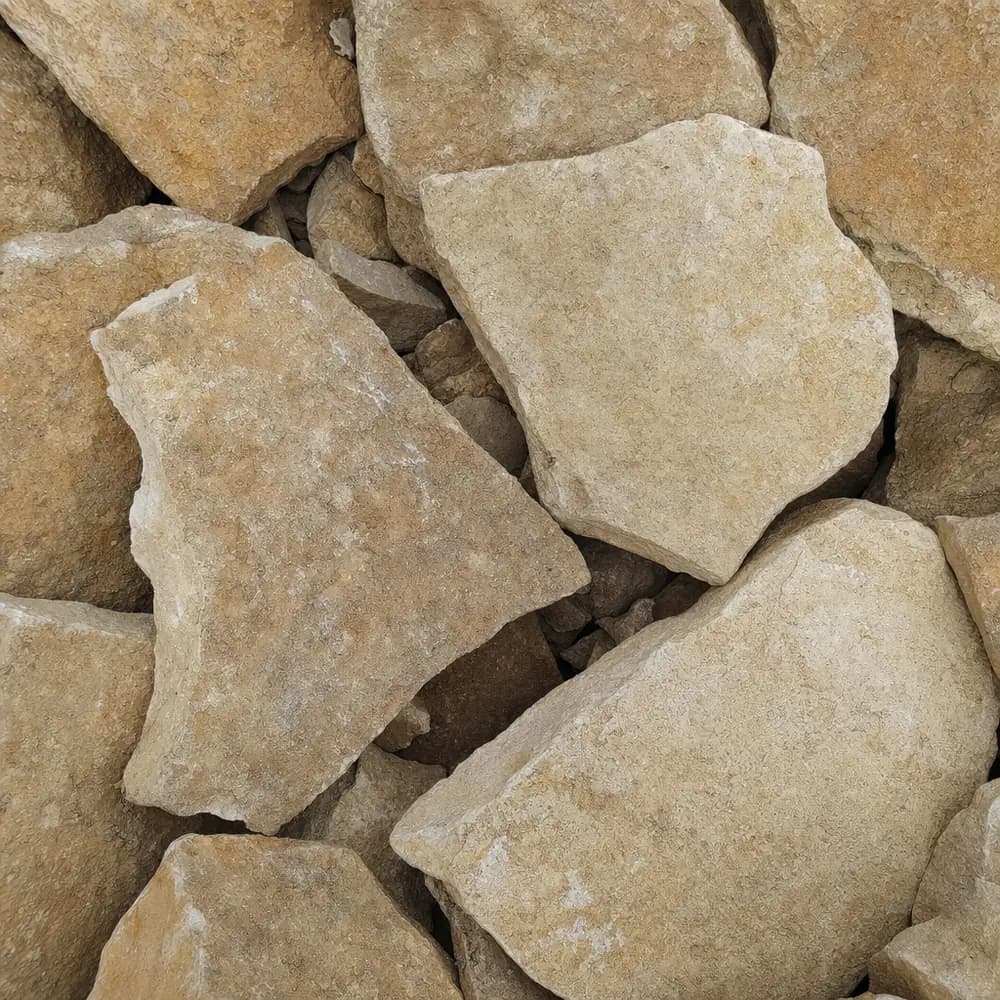

Bank work has a season, and it is not the one the damage happens in. Hurricane season runs June through November, the same stretch that brings the surge, the boat wake on a full canal and the afternoon storms that put a lot of water down a swale in twenty minutes. Armor stone wants to go in before that, on a dry-season bank you can actually stand on and shape. RipRap is the catalogue's heavy stone for the job: 4 to 12 inches and up, large and heavy, sized to stay put when moving water hits it.

What 4 to 12 inch stone is doing once water is already moving

Grading is the whole specification. There is no binding fine in it, no compaction step, and no strength claim to make; a riprap layer works because each piece is too heavy for the water at that point to move, and because the pieces interlock enough to hold their neighbors down. Undersized stone gets rolled and ends up in a heap at the bottom of the slope. Oversized stone bridges and leaves gaps that water gets under.

The second thing it does is break up the energy. Water arriving at a bank or leaving a culvert has a velocity, and the rough, irregular face of a stone layer turns that flow into turbulence so it arrives at the soil with far less bite. That is why the stone belongs exactly where the water is working and nowhere else. A blanket of armor stone spread across ground that water never reaches is a lot of money sitting on a lawn.

Where riprap fits on a Florida lot, and where it is the wrong tool

The last row is worth spelling out, because it is the most common misuse. A 12 ft by 16 ft shed pad, 192 sq ft at 12 inches, would take about 7.1 cubic yards of armor stone (192 x 1 = 192 cubic feet, 192 / 27 = 7.1) and still need filling and capping before anything sat on it. A compacting base mix does the same job in four inches.

Canal banks, pond edges and the window before hurricane season

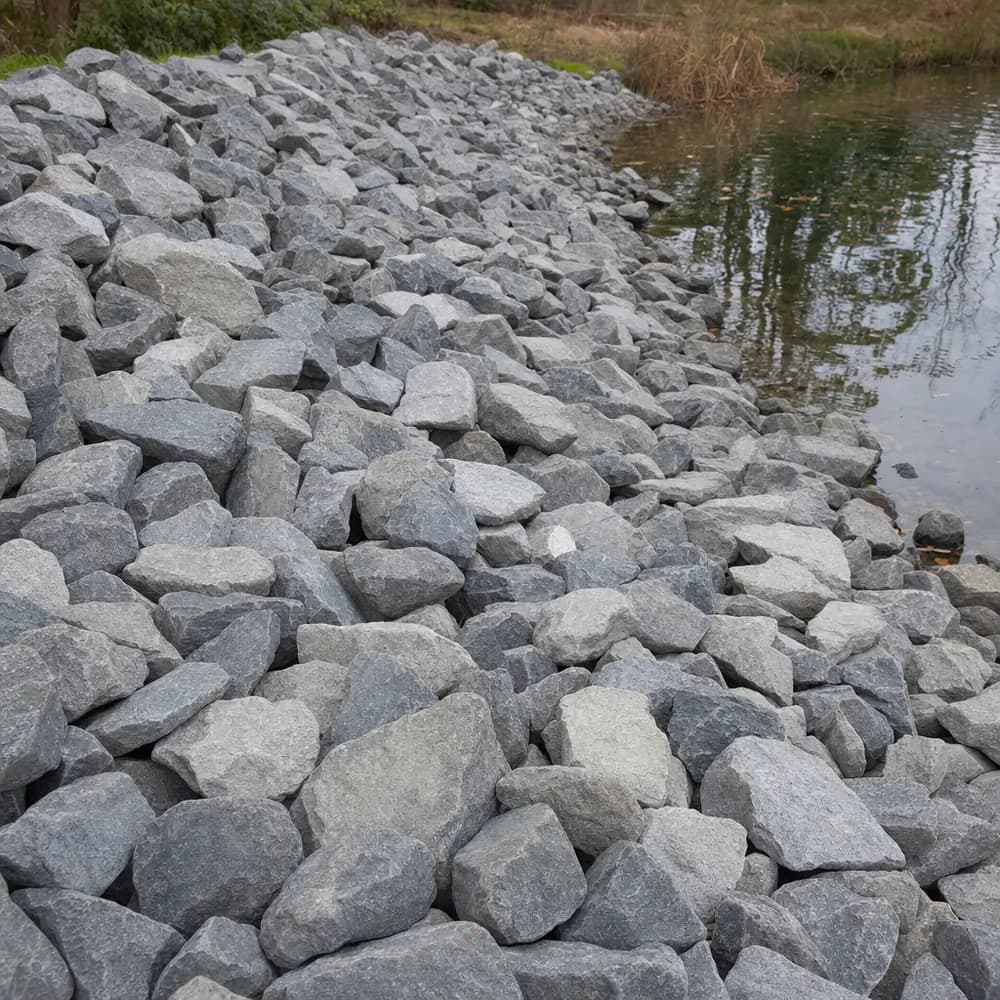

Florida erosion is not a frost story. It is wave energy on pond, lake and canal banks, storm surge along the Gulf and Atlantic coasts, and washouts where runoff concentrates on bare sand after a tropical downpour. All three attack the same place: the toe of the slope, where the water sits.

So start the stone below the working waterline and build up, not the other way around. A layer that begins at the top of the bank and stops short of the toe undermines from underneath and slides in one piece. Where the water table is high, keep the excavation shallow and practical rather than cutting a deep key that fills before the stone arrives. Lay filter fabric between the sand and the stone: without it, fine sand pumps out through the gaps every time a wake washes in, and the stone sinks into the hole it makes.

Face slope matters as much as stone size. A slope laid back to roughly two feet horizontal for every one foot of rise holds stone comfortably. Anything much steeper wants either bigger stone or a different solution.

Placing heavy stone and what the day of delivery needs

Stone at this size is placed rather than spread. Individual pieces are a two-hand lift at the small end of the grading and a machine job at the large end, so plan for a compact excavator or a skid steer with a bucket for anything beyond a splash pad. Set the pieces so they touch and interlock, with the flattest face down, rather than tipping a load and raking it out.

Two hypothetical quantities:

• A downspout splash area, 4 ft by 6 ft, one stone deep at 12 inches. 4 x 6 = 24 sq ft. 24 x 1 = 24 cubic feet. 24 / 27 = about 0.9 cubic yards.
• A canal bank face, 30 ft of shoreline with an 8 ft measured slope face, at 12 inches. 30 x 8 = 240 sq ft of face. 240 x 1 = 240 cubic feet. 240 / 27 = about 8.9 cubic yards.

Measure the slope face along the slope, not the flat ground it sits above; on a two-to-one bank that is noticeably longer. At this site's published figure for riprap and armor stone, about 3,100 lb per cubic yard or roughly 1.55 tons per yard, that is approximately 1.4 tons for the splash area (0.9 x 1.55) and 13.8 tons for the bank face (8.9 x 1.55). Run both figures through the rip rap calculator to turn cubic yards into the tonnage you order.

Choose a quantity and a delivery date on this page. Delivery is arranged at checkout by ZIP code, and the truck needs clear access to a spot it can tip, on firm ground with room to work, not on a soft bank edge or a septic field. Tip as close to the water as the ground safely allows, because every foot of double handling with heavy stone is real work.
