#8 Crushed Stone for Permeable Paver and Drainage Details

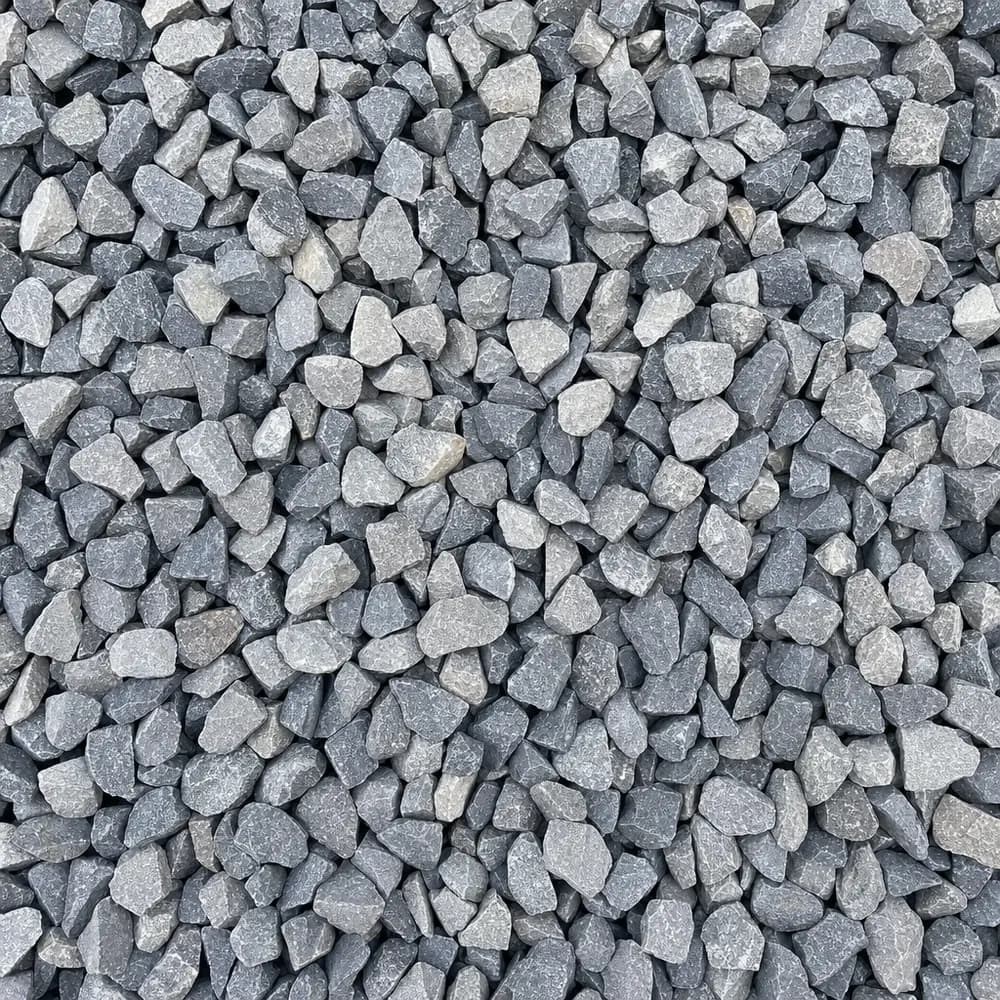

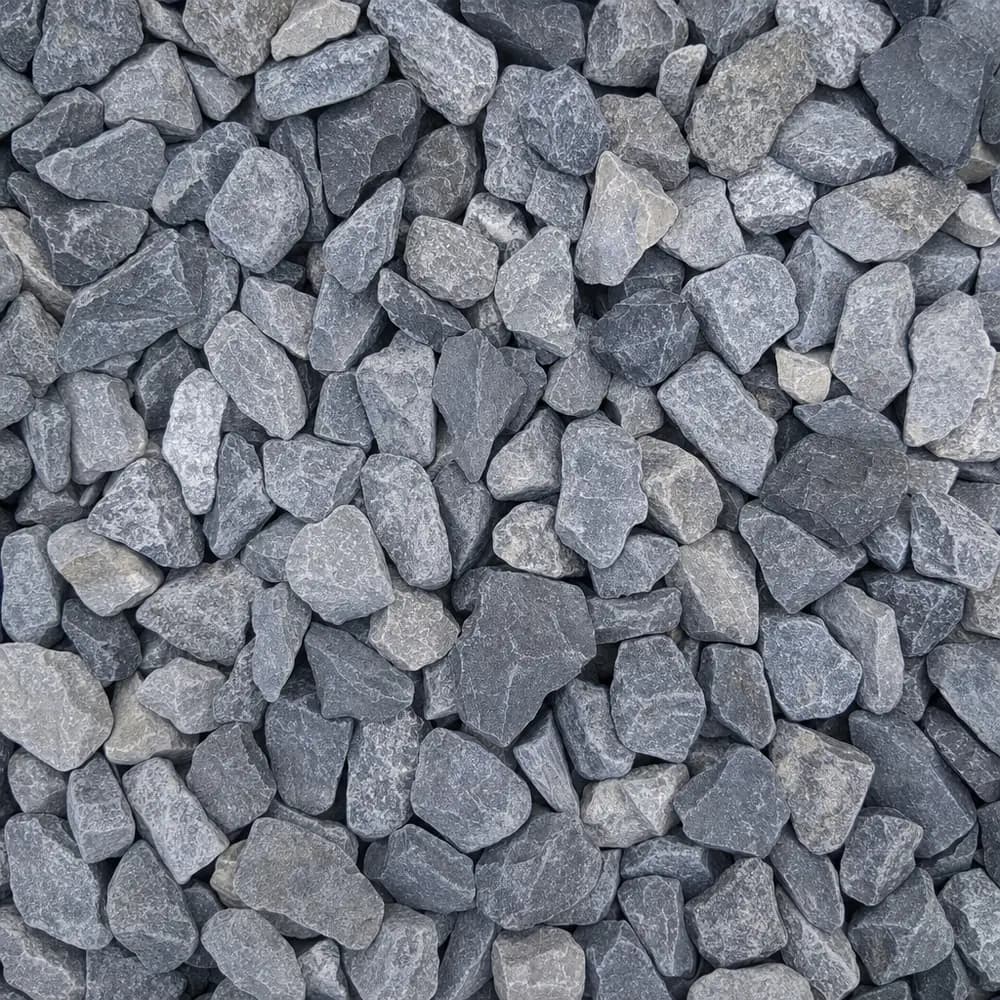

Permeable paver work is what puts most #8 crushed stone on a truck heading to a Florida address, and the reason sits in the ground rather than in the paver. On a flat sandy lot with the water table close under it, a summer storm drops more water than the surface can shed sideways, so the drive gets built to swallow it instead. That only works if the aggregate inside the system stays open. Size here is about 3/32 inch to 3/8 inch, graded #8, clean with little to no fines, and every piece is crushed rather than rounded.

When #8 crushed stone earns the order on a sand lot, and when it does not

Reach for it when the layer's job is to pass water:

• Bedding and joint fill inside a permeable interlocking paver system, with the supporting base built separately underneath.
• A drainage zone against the back of a block or timber wall, where water has to fall to an outlet instead of pushing on the wall.
• Bedding under and around pipe, where small even stone packs in around the haunches without leaving a void.
• A concrete mix that calls for a small coarse aggregate.

Leave it alone when the layer has to do anything structural. Clean stone with no fines has nothing to bind it, so it will not set up under a plate compactor, will not hold a wheel track, and will not stay put where moving water can reach it. A pad, a drive surface or a gate entrance asks for a graded mix with dust in it, and that is a different product.

Bedding and joints in a permeable drive on flatwoods sand

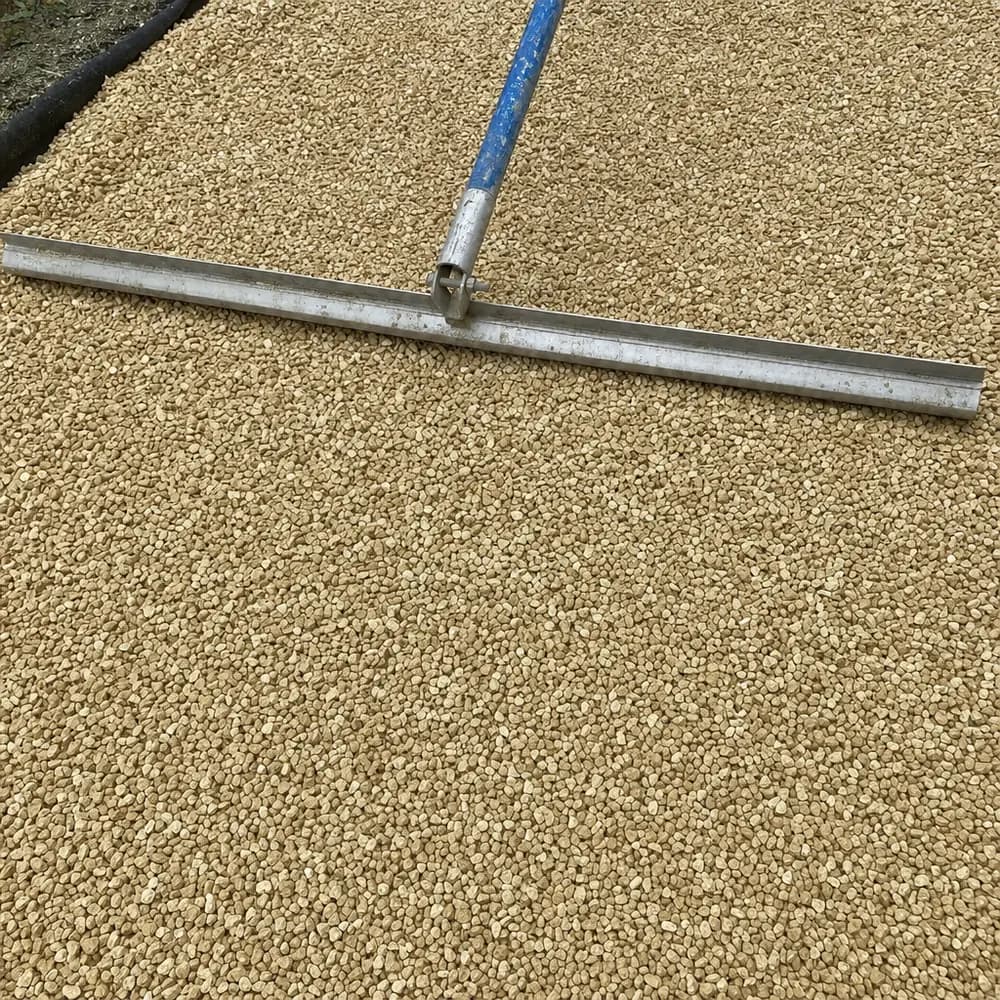

In a permeable system the pavers are only the wearing surface. Below them sits a thin bedding course of open stone, and the joints between the pavers are filled with the same small aggregate so rain drops straight through rather than running to the edge. #8 suits both roles: large enough that the voids between pieces stay useful, small enough to screed flat at an inch or two and to broom into a narrow joint.

Under that bedding go the storage and base layers, built from coarser open stone, and under those the subgrade. On flatwoods sand with a hardpan layer, the ground beneath may not take water away at the rate the surface delivers it, which is why these systems get designed with an overflow route rather than trusted to swallow everything. Settle where the overflow goes before the first load lands.

Behind a block wall, the stone belongs in the drainage zone only

Take a low garden wall holding back a raised bed or a terraced side yard. The failure mode here is not freezing, because the ground does not freeze. It is water standing in the soil behind the wall after a run of afternoon storms and pushing on the back of the block.

A column of clean stone against the wall face, wrapped in non-woven filter fabric and drained at the bottom to somewhere lower, gives that water a route out. #8 works in this role, particularly where the chimney is narrow and a coarser stone would bridge awkwardly around a perforated pipe. Sand is the enemy of the detail rather than the wall: fine quartz grains travel in moving water, and once they fill the voids the drainage zone is just buried dirt. The fabric is what stops that.

Open stone carries water, not weight

Worth being blunt about, because the question comes up every time someone feels how firm a screeded #8 bed is underfoot. That firmness is interlock between angular faces, not a bound layer. Put a load on it, especially over soft sand, and the pieces shuffle sideways until the layer thins and whatever sits above it dips.

Anything that has to bear weight needs a compacting base course laid and rolled first. Limerock base is the standard Florida answer under a pad or a drive, and clean stone goes above it or beside it, never instead of it.

A pond edge and a construction entrance both want heavier stone

Two jobs get asked about on this page that #8 should not be sent to.

A pond, lake or canal bank taking wave action and storm runoff needs armor heavy enough that water cannot roll it. Stone at 3/8 inch moves in the first tropical downpour. Size that job with RipRap instead, matching stone size to the bank height and the flow.

A construction entrance, or a farm gate that trucks turn on, needs something a tire cannot pick up and throw. That is the job for #4 Crushed Stone, or coarser again under heavy traffic. Send #8 there and it will be out in the road inside a week.

Tons behind a 38-foot wall, under a paver apron and along a pipe run

The stone calculator takes length and width in feet and depth in inches, handles rectangles, circles and up to five separate areas, and adds an extra five percent by default. It runs (L x W x D/12) / 27 = cubic yards, then multiplies by density for tons. Florida Rock Supply publishes about 2,800 lb per cubic yard for the #8, #89 and 3/8 inch chip family, which is 1.40 tons per yard. Three hypothetical jobs:

• Drainage chimney behind a 38 ft wall, 12 inches wide, 4 ft high. 38 x 1 x 4 = 152 cubic feet. 152 / 27 = 5.63 cubic yards. 5.63 x 1.40 = about 7.9 tons.
• Bedding course under a 20 ft by 24 ft permeable apron at 2 inches. 20 x 24 = 480 sq ft. 480 x (2/12) = 80 cubic feet. 80 / 27 = 2.96 cubic yards. 2.96 x 1.40 = about 4.1 tons.
• Bedding along a 45 ft pipe run, 2 ft wide, 9 inches deep. 45 x 2 x 0.75 = 67.5 cubic feet. 67.5 / 27 = 2.5 cubic yards. 2.5 x 1.40 = about 3.5 tons.

Check your own figures on the stone calculator before committing, then set a quantity and a delivery date here. Delivery is arranged at checkout by ZIP code, and the driver needs a clear route in and firm ground to tip on, well back from an open trench edge.
